Stream Jet Continues to Revolutionize Ink Jet Printing

Stream Jet offers usability, quality, lower printing costs and a concern for the environment.

The SJ-500 Standard features 600×300 dpi, combining both high resolution and high-speed printing to a maximum printing speed of 100 meters per minute.Up to 10 heads can be combined to create a printing width of more than 1 meter.

SJ-500 Standard Base Print Engine Specifications

Printing Method	Piezoelectricity DOD System
Number of Mountable Heads	1 to 10
Printing Width / 1 Head	108mm
Resolution	Printing Width Direction 600 dpi, Printing Advance Direction 600 dpi, 300 dpi
Printing Speed	Maximum 50 meters per minute (600×600 dpi) Maximum 100 meters per minute (600×300 dpi)
Ink	Black UV Ink Alternatively, there is Cyan, Magenta or Yellow.
Dry Method	UV Curing System
Main Power	AC 100-240V、50-60Hz
Operating Environment	Temperature 15-35℃ (59 to 95F)、Relative Humidity 20-70%

SJ-500 Standard Controller Basic Specifications

Controller Operating System	Windows® 7
Display	Touch Panel
Key Features	Job Selection Print Start / Stop Show Preview Pattern Printing to Check the Nozzle View Log Set Print Density Printer Settings

The SJ-500 Compact has replaced the SJ-500 Standard as our low-end model.
It features high-resolution printing at speeds up to 50 meters per minute.It is best for the narrow web market, since the maximum number of printing heads that can be attached is two.

SJ-500 Compact Base Print Engine Specifications

Printing Method	Piezoelectricity DOD System
Number of Mountable Heads	1 to 2
Printing Width / 1 Head	108mm
Resolution	Printing Width Direction 600 dpi, Printing Advance Direction 600 dpi, 300 dpi
Printing Speed	Maximum 50 meters per minute (600×600 dpi) Maximum 50 meters per minute (600×300 dpi)
Ink	Black UV Ink Alternatively, there is Cyan, Magenta or Yellow.
Dry Method	UV Curing System
Main Power	AC 100-240V、50-60Hz
Operating Environment	Temperature 15-35℃ (59 to 95F)、Relative Humidity 20-70%

SJ-500 Compact Controller Basic Specifications

Controller Operating System	Windows® 7
Display	Touch Panel
Key Features	Job Selection Print Start / Stop Show Preview Pattern Printing to Check the Nozzle View Log Set Print Density Printer Settings

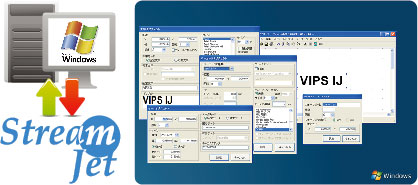

VIPS (Variable Information Print Software) is a Windows®-based high-performance layout software system.
TheGUI (graphical user interface) layout design can be adjusted simply by using a mouse, without additional programing. The interface features an on-screen review and WYSIWYG data output.. VIPS generates its own internal data so you don’t need to provide data in advance and you can avoid waiting for complex check digit numbering processes. After the printing process, you can also improve your overall business productivity by using the data sorting feature..
If you use an optional printer driver, you can print to files, including a PDF file.

VIPS Specifications

External Data Allocation	Variable Length (CSV, TSV), Fixed Length
Font	OpenType, TrueType Fonts
Text Encoding	SJIS、UNICODE
Key Features	Bar Code Creation, Automatic Numbering, Check Digit, Imposition
Allows for Bar Codes	JAN, ITF, NW-7, Industrial 2OF5, CODE39, CODE93, CODE128, EAN128(CVS), QR Code （Model 1, Model 2, Micro QR）, PDF417, Data Matrix, GS1 DataBar
Related Software	Calculate the Amount of Printing Possible with One Liter of Ink
Option	Printer Driver
